The IMST 24 GHz FMCW Radar Development Kit DK-sR-1800e consists of 1 transmit and 8 receive antennas. The transmit antenna covers 70° in azimuth and 8° in elevation. The 8 receive channels cover fixed sectors of 9° beam-width in azimuth and 8° in elevation, so that unambiguous distances and velocity can be measured in each sector. This is achieved by applying a Rotman Lens in the frontend circuit. DK-sR-1800e comes with a Graphical User Interface (GUI) called SenTool. SenTool makes it easy to configure the sensor and to measure, visualize and analyze the data of the radar in several different graphical plots.

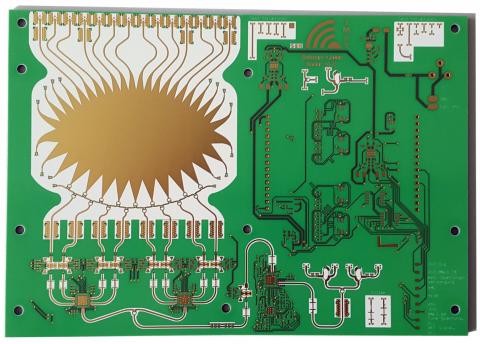

RF board with Rotman Lens for static Beamforming
| TECHNICAL DATA |
| GENERAL | |
| Modulation: FMCW / CW | FMCW / CW |
| Operating Frequency: | 24.0GHz - 24.25GHz (ISM band), max. BW = 700 MHz |
| Number of Channels: | 1 Tx, 8 Rx |
| Data Interface: | Ethernet (with PoE) |
| ANTENNA | |
| Antenna Type: | Integrated Patch Antennas |
| Tx Antenna Characteristics: | 70° Azimuth, 8° Elevation |
| Rx Antenna Characteristics: | 8 x 9° Azimuth, 8° Elevation |
| Antenna Gain: | 18 dBi (Tx) |
| Antenna Polarization: | linear |
| MEASUREMENT | |
| Min. Measurement Range: | 0.6m (@ ISM band) |
| Max. Measurement Range: | 307m (@ ISM band) |
| Range Resolution: | max. 0.6m (@ ISM band) |
| Max./Min. Speed (theoretical): | ±3200m/s |
| Speed Resolution: | 6.25m/s (@ 24GHz, CW Mode, Pulse Time = 1ms) |
| FMCW PERFORMANCE | |
| Frequency Ramp Duration: | 1ms - 100ms |
| Typical Update Rate: | 8Hz - 100Hz (depending on application) |
| Output Power (EIRP): | 10dBm - 25dBm (tunable) |
| TEMPERATURE | |
| Min. Operating Temperature: | -40°C |
| Max. Operating temperature: | +60°C (@ duty cycle < 50%) |
| POWER SUPPLY | |
| Operation Voltage: | 44V - 54V (PoE) and 5V from external adapter |
| Standby Power: | 2.2 W |
| Operating Power: | 5.5 W |
| SETUP | |
| Dimensions (L x W x H): | 175mm x 125mm x 30mm |
| Weight: | ~200g (with cable) |
| Mounting: | 5 Mounting Holes in Circuit Board |
| Connection Cable and Connector: | CAT-6 with RJ45 Female Plug (Ethernet) |
| Housing: | Stack of Boards, No specific Protection |
Demonstrator Data Sheet sR-1800e
More details about the DK-sR-14MPc can be found in the product data sheet.
